CIPP — cured-in-place pipe — is trenchless repair at its least invasive: a resin-saturated liner goes inside your existing sewer line and hardens into a seamless new pipe. Cracks sealed, roots locked out, no digging required.
A resin-saturated liner is placed inside the old pipe, then cured into a new pipe within the old one.
A new pipe inside the old one — through existing cleanouts, often no digging at all
Seals cracks and stops root intrusion with one continuous, jointless liner
Commonly rated for 50 years — corrosion-proof and root-proof by design
If your sewer line is cracked, leaking, or root-invaded but not collapsed, CIPP lining may be all it needs — a new pipe-within-a-pipe, often with zero excavation. A camera inspection confirms whether your line qualifies.
No-dig technologyPipe bursting & CIPP lining instead of open trenches
Local to GrapevineFocused service area — not a national call center
Done in a dayMost trenchless repairs complete in one visit
Upfront pricing guidanceKnow the numbers before any work starts
The Method, Explained
What Is CIPP Pipe Lining?
CIPP — cured-in-place pipe — rehabilitates your sewer line without replacing it. A tube of felt or fiberglass saturated with epoxy resin is inserted into the existing pipe, pressed tightly against the pipe walls, and then cured into a rigid new pipe using hot water, steam, or UV light. The result is a seamless, jointless "pipe within a pipe" that becomes the new structural surface of your sewer line.
Think of it as the least disruptive way to fix a sewer line in Grapevine: the work happens through existing cleanouts or a single small access point, and your driveway, patio, and landscaping are never touched. It's ideal for clay-tile and cast-iron laterals with cracked sections or root intrusion where the pipe is still holding its shape.
Is It Right for Your Line?
When CIPP Lining Is the Right Call
Lining works beautifully — when the host pipe qualifies. Here's the honest breakdown.
Cracks & Root Intrusion
The classic lining case: clay-tile joints invaded by roots from Grapevine's mature oaks and pecans. The liner seals every joint and crack along the section — roots permanently locked out.
Lines Under Structures
When the damaged section runs under a pool deck, addition, or stamped driveway, lining through an existing cleanout can fix it with literally zero excavation.
Corroded Cast Iron
Cast-iron pipe under Grapevine slab homes corrodes and scales from the inside. Lining creates a smooth new interior surface that restores full flow without breaking concrete.
Honest Limits of Lining
Lining can't fix what it can't bridge: fully collapsed sections, major bellies (sags), or badly offset joints need pipe bursting or excavation. It also can't correct slope problems or increase pipe diameter. We tell you on camera which camp your line is in.
Why Line Instead of Dig
Benefits of CIPP Lining
Zero Excavation
Installed through existing cleanouts or a single small access point. No trench, no pits, no restoration — the yard looks untouched when we leave.
Smoother Flow
The cured epoxy interior is smoother than clay tile or corroded cast iron — wastewater flows faster, and debris and grease have less to cling to.
50-Year Rating
CIPP liners are commonly rated for 50 years of service. Corrosion-proof, chemical-resistant, and jointless — it's a generational fix, not a bandage.
How It Works
CIPP Lining in 4 Steps
1
Inspect & Clean
Camera inspection confirms the pipe qualifies. Hydro jetting and descaling strip roots, scale, and buildup for a clean bonding surface.
2
Insert Liner

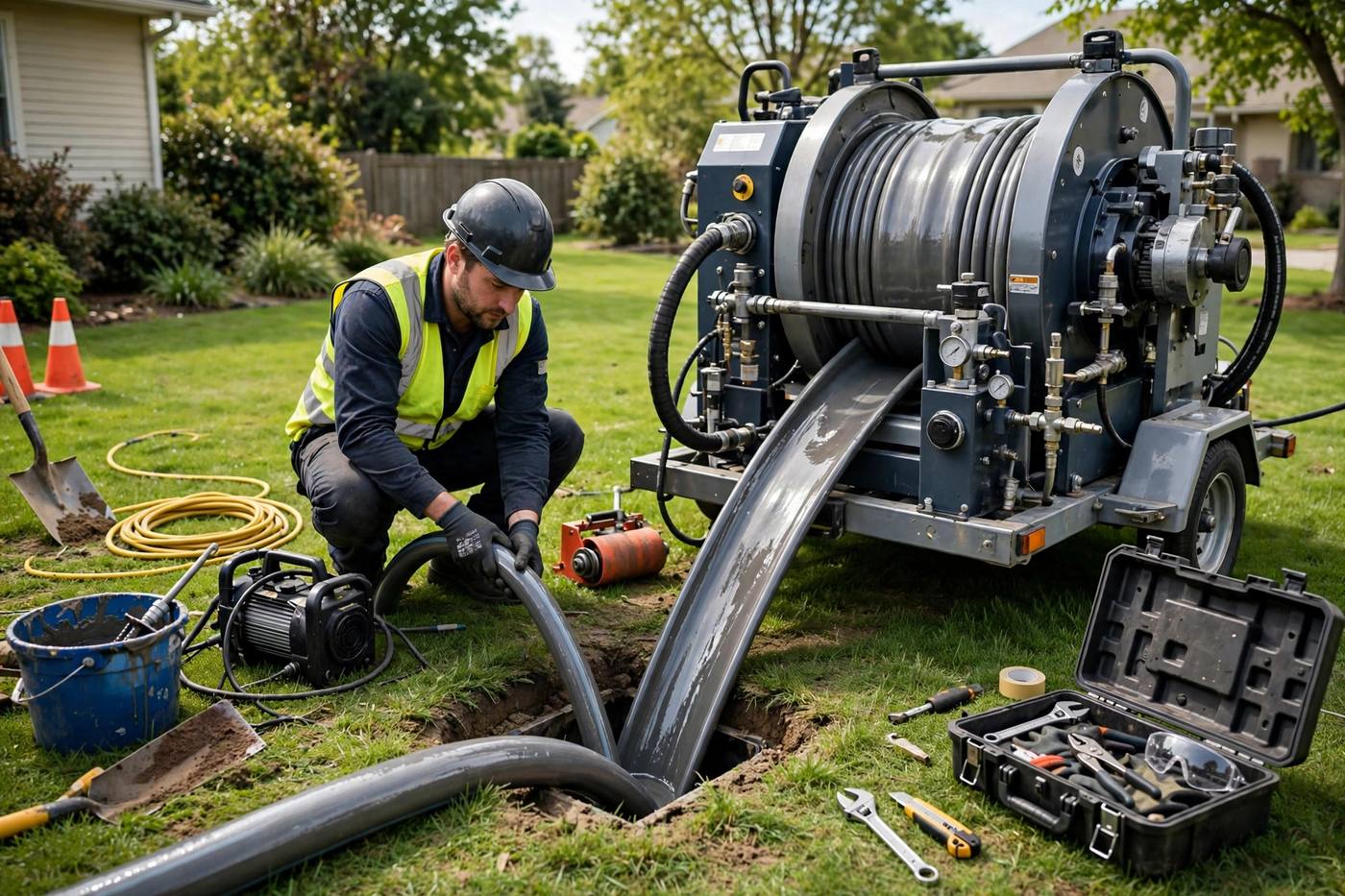

The resin-saturated liner is inverted or pulled into the pipe through a cleanout or small access point and positioned over the damaged section.
3
Cure the Pipe
Hot water, steam, or UV light cures the resin into a rigid, seamless pipe pressed tight against the old walls.
4
Verify Flow
Once cured, a final camera run confirms a smooth, continuous liner. Service connections are reinstated and the line goes back into service.
Does your line qualify for lining?
A camera inspection shows us exactly what the pipe looks like — and whether lining or bursting is your best move.
CIPP — cured-in-place pipe — is a trenchless repair method. A felt or fiberglass tube saturated with epoxy resin is inserted into the existing sewer line, pressed against the pipe walls, and cured (with hot water, steam, or UV light) into a hard, seamless new pipe inside the old one.
CIPP lining in Grapevine typically runs $80 to $200 per foot as a general estimate, with most residential jobs between $4,000 and $10,000 depending on length, diameter, and condition of the host pipe.
The honest limits: CIPP slightly reduces the pipe's inside diameter, cannot fix slope or belly problems, and needs a relatively intact host pipe — it can't bridge fully collapsed sections. It also needs curing time before the line goes back into service.
For collapsed or badly out-of-grade lines, pipe bursting is usually the better trenchless option.
CIPP liners are commonly rated for 50 years. The cured epoxy pipe is corrosion-proof, jointless, and resistant to the chemical attack that destroys clay tile and cast iron — and with no joints, tree roots have no entry points.
Yes — this is one of lining's strongest benefits. Roots enter sewer lines through joints and cracks. A CIPP liner creates a continuous, jointless pipe, eliminating every entry point along the lined section.
Most residential CIPP lining jobs in Grapevine are completed in one day: cleaning and prep in the morning, liner installation midday, and curing completed the same day. The line goes back into service once the liner is fully cured.
Still deciding between lining and bursting?
Call — we'll walk through your camera footage and tell you which method your line actually needs.
